MULTI-PLANE LIFT

FREEMOTION

Contact us for pricing

(No reviews yet)
Current Stock:

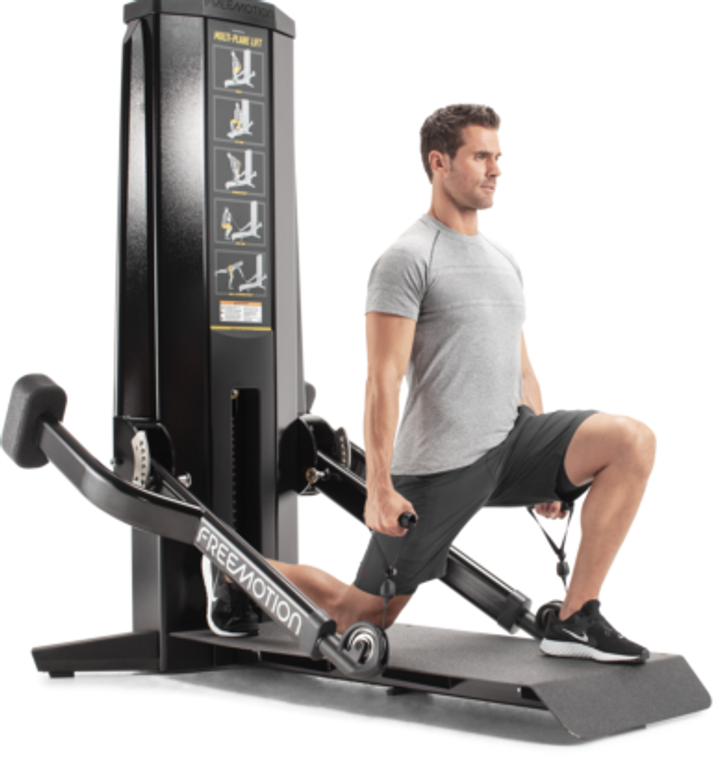

Regardless of user height or which lifting or lunging exercise, the GENESIS Multi-Plane Lift has vertically adjustable handle arms for a precise fit for the movement. The low-profile platform is textured for secure foot placement when moving or stepping off the machine. Swivel pulleys and ample cable travel allow for compound and dynamic movements like a single leg RDL to a row off the platform.

Fine-tune Range of Motion

Lift arms adjust vertically to customize starting range for users of varying heights.

Freedom to Move

Freedom to Move

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.

Movement Variety

Movement Variety

Handles move independently for single and alternating arm exercises.

G612-3Q-M2-Croped

Sure Footing

Textured platform helps ensure secure foot placement even during dynamic exercise.

Details & Specs

Features

Extensive Cable Travel

Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

Movement Variety

Handles move independently for single and alternating side exercises.

Enclosed Weight Stack

The weight stack is enclosed to limit access to moving parts for safety.

Built to Last

Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

Kick Plates

Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.

Specifications

G612 Multi Plane Lift Footprint
Product Features
  • Instructional PlacardsYes
  • AdjustmentsIndependently adjustable arms with 6 settings
  • Resistance1 arm: 100 lb / 45.3 kg
    2 arms: 200 lb / 90.7 kg
  • SeatN/A
  • PulleysSingle swivel pulley
  • Cable Travel120 in / 304.8 cm
  • Rubber FeetMolded floor protectors
  • Maximum User Weight350 lb / 159 kg
  • Americans with Disabilities Act (ADA)Wheelchair Accessible
Product Specifications
  • Weight Stack400 lb / 181 kg
  • Drop Down WeightN/A
  • Weight Stack Configuration5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
    60 - 200 x 10 lb / 27.2 - 90.7 x 4.5 kg
  • Standard Frame ColorBlack River, Flat Black, Platinum Sparkle, White River
  • Optional Frame ColorCustom colors available upon request
  • Plastic ColorEbony
  • Standard Upholstery ColorN/A
  • Optional Upholstery ColorN/A
Product Dimensions & Weight
  • Dimensions L x W x H71 x 42 x 77 in / 180.3 x 106.6 x 195.5 cm
  • Footprint71 x 42 in / 180.3 x 106.6 cm
  • Weight977 lb / 443.1 kg
  • Shipping Dimensions76 x 42 x 73 in / 193. x 106.6 x 185.4 cm
  • Shipping Weight973 lb / 441.3 kg
Certifications
  • EN957, CE
Warranty (US & Canada)
  • Frame10 Years
  • Parts3 Years
  • Cables & Labor1 Year
  • Cosmetic & Wear Items6 Months
  • Upholstery & Padding120 Days
Warranty (International)
  • Frame10 Years
  • Parts3 Years
  • Cables & Labor1 Year
  • Cosmetic & Wear Items6 Months
  • Upholstery & Padding120 Days
